High Quality Soft Magnetic Alloy 1J50 for Hot Sale
Nominal Chemical composition (%)
Alloy 1J50 | C | Mn | Si | S | Ni | Fe | P | Cu |
Min | 0.30 | 0.15 | 49.0 | |||||
Max | 0.03 | 0.60 | 0.30 | 0.02 | 50.5 | Balance | 0.02 | 0.2 |
Physical Properties | |
Resistivity,μΩ•m | 0.40 |
Density,g/cm3 | 8.12 |
Curie Point,°C | 940 |
Melting point ,°C | 1427 |
Elastic modulus ,GPa | 207 |
Hardness, Rockwell B [HRB] | 20 |
Thermal conductivity,W/(m•K) | 29 |
Elongation, [A]% ≥ | 7 |
Applications
Soft Magnetic Alloy50 is used transformer cores, highly efficient motors, shielding, and specialized electronic devices, such as LF power transducers, chokes, relay parts, solenoids & oscillators.
Forms available

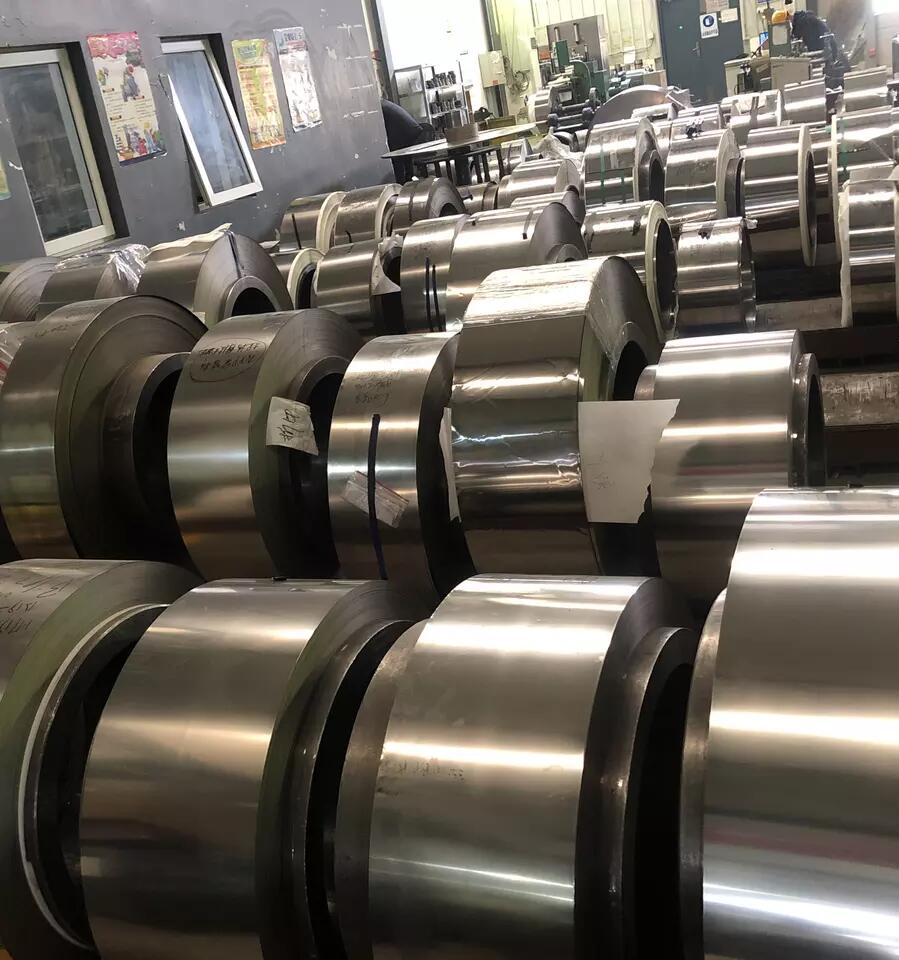

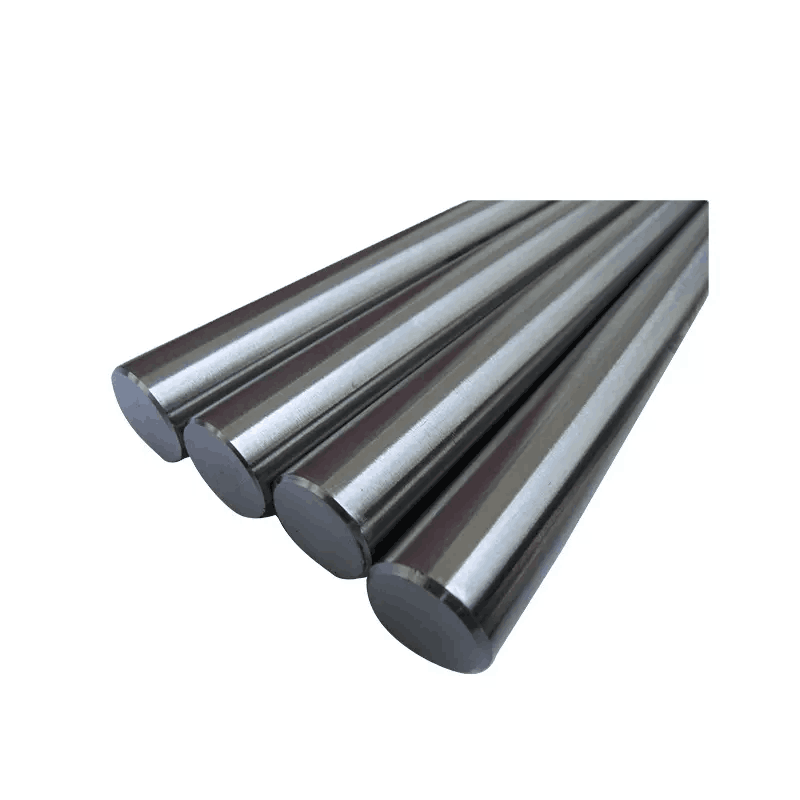

Strip, bar, wire.
(δ&D)/mm | μ0.08/(mH/m)≥ | μm/(mH/m)≥ | Bs/T≥ | Hc/(A/m)≤ |
Condition : Cold Rolling Stip | ||||
0.10-0.19 | 3.8 | 43.8 | 1.5 | 12.0 |
0.20-0.34 | 4.4 | 56.3 | 1.5 | 10.4 |
0.35-0.50 | 5.0 | 65.0 | 1.5 | 8.8 |
0.51-1.0 | 5.0 | 50.0 | 1.5 | 10.0 |
1.10-2.5 | 3.8 | 44.0 | 1.5 | 12.0 |
Hot Rolling(forging) Bar | ||||
8-100 | 3.1 | 31.3 | 1.50 | 14.4 |
Hot Rolling(Forging)Flastspring | ||||
3-22 | 3.1 | 31.3 | 1.5 | 14.4 |
Why choose us?
1. We can tailoring your unique requirements with ASTM, UNS ,GOST, standards.
2. We can produce more people cannot produce products
3. Short Lead-time
4. Leading Edge Technology
5. Good quality control in production process, ISO9001:2008, SGS, CQC, approved.
6. Excellent quality and High cost of performance
7. Available in an extensive range of stock or custom size.
8. The whole process from raw material to finished products can be traced.
9.our workshop is bigger, advanced facilities and test equipment .
FAQ
1.Q: How can I trust this factory ?
A: You can visit our website www.yihaoalloy.com. Our factory's License and certificate appear on the website.(License Number can check the aptitude of the factory on Chinese Gov web ,English version available )
2. Q: Is this factory far away from the port? Is this will take longer for delivery?
A: From Danyang to any port in China with in one day, convenient transportation only can improve the delivery.
3. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Danyang , Jiangsu Province, China.
All our clients from all over the world, are warmly welcome to visit us! Free pick up !
4. Q: How can I get some samples?
A: We are honored to offer you samples.(sample will delivery as our stock size)
5.Q: How does your factory do regarding quality control?
A. Quality is priority. our factory have advanced facilities, High qualified technical personnel and technical support and always attach great importance to quality controlling from beginning to end. All requirements with ASTM, UNS, GOST standards.
6.Q Are you ISO 9001 approved ?
A:Yes,we have held ISO 9001 approval since 2015
