Chemical Composition:
brand | Chemical composition (%) | ||||||||
Ni | Fe | C | P | Si | Co | Mn | Al | S | |
Nilo 42 | 41.5~42.5 | Bal | ≤0.05 | ≤0.02 | ≤0.3 | - | ≤0.8 | ≤0.1 | ≤0.02 |
Basic physical constants and mechanical properties of the alloy | |||||
brand | Thermal conductivity | Specific heat capacity | Density | Electric resistivity | Curie point |
Nilo 42 | 14.6 | 502J | 8.12 | 0.61 | 360 |
Typical expansion character(10 -6 / ºC ) | |||||
Temperature range | 20~200 | 20~300 | 20~400 | 20~500 | 20~600 |
Expansion coefficient | 4.9 | 4.8 | 5.9 | 7.8 | 9.2 |
Applications:
Alloy 42 has been used for the glass-to-metal seals in electronic tubes, automotive and industrial lamps, transformer and capacitor bushings and other glass-to-metal and ceramic-to-metal applications.
Forms:

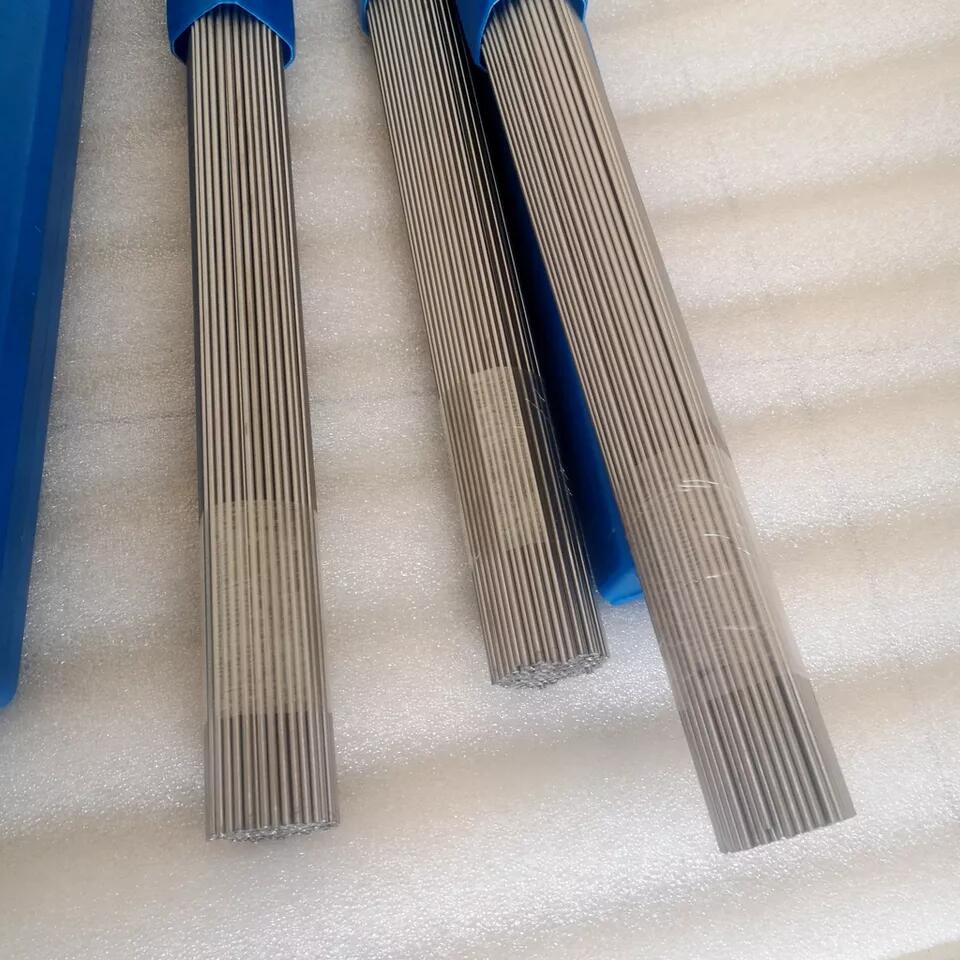

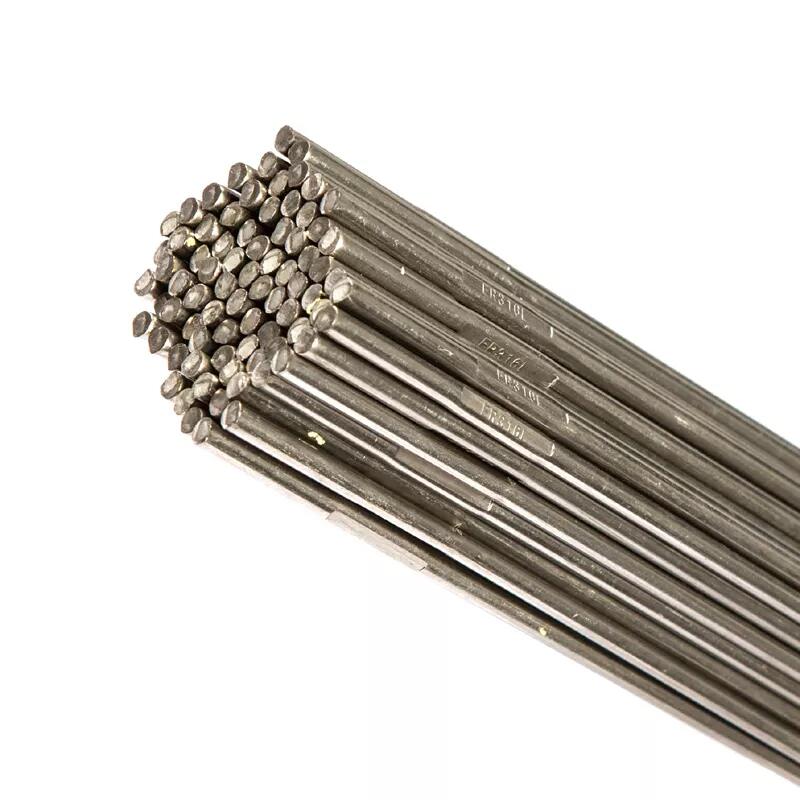

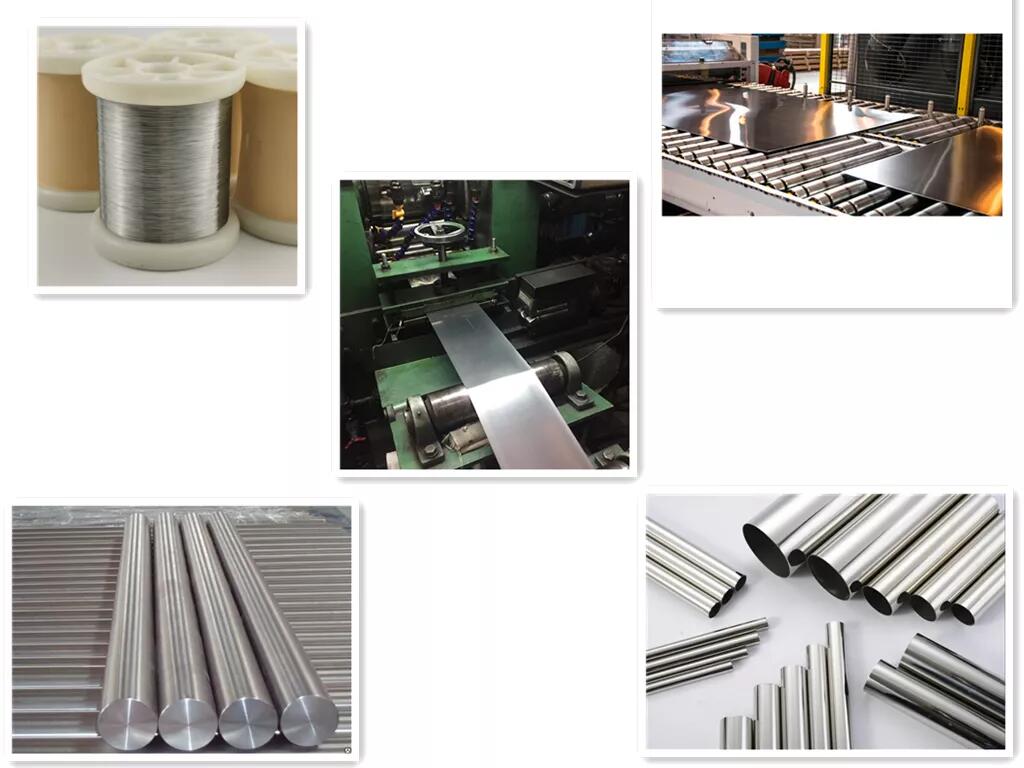

We can supply these products in all forms including wire, ribbon, strip, sheet and foil. You also can send your custom Dimensions and Tolerances by email or phone us.
Our test equipment
Our company has Hardmeter,brideg, spectrometer,alloy analyser,fast life tester ect,test equipment.So we are products is high quality, trustworthy.
packing and shipping
Wire is packed with waterproof paper or weave bag, into pallets or wooden case.Special packaging requirements can also be accommodated.
