Ni-Cr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

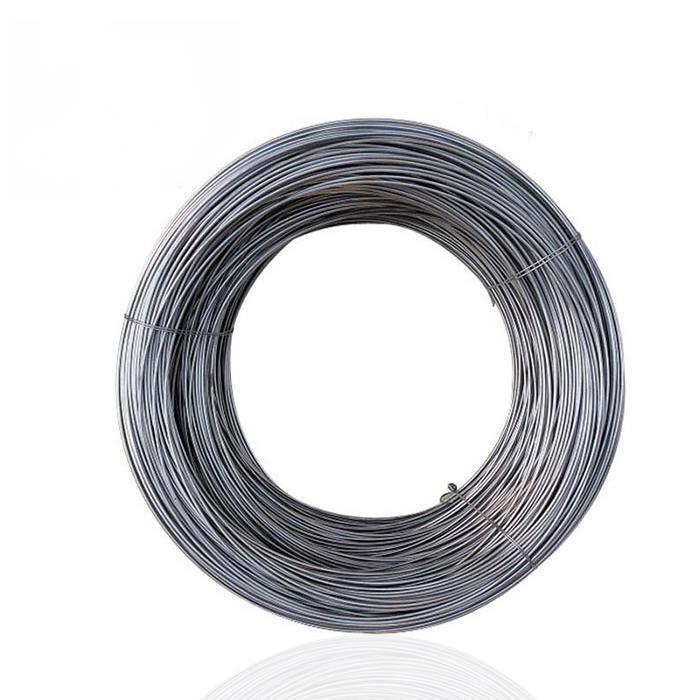

Electrical Resistance Wire / Nichrome Wire

Size dimension range:

Standard: GB/T1234-2012

Max. continuous service temp. of element (ºC): 1200

Meltiing point (ºC): 1400

Resistivity at 20ºC (μΩ·m): 1.09±0.05

Density(g/cm3): 8.4

Thermal conductivity (KJ/m·h·ºC): 60.3

Coefficient of lines expansion(α×10-6/ºC): 18

Elongation at rupture (%) >20

Micrographic structure: Austenite

Magnetic properties: Non-magnetic

Our advantage:

1,We are a factory, we have a large enough workshop and warehouse

2,We have advanced equipment testing equipment and excellent team

3,We has got Iso9001 International Quality Management System Certificate

4,We accept and meet customer's customized needs。

Application:  Cr20Ni80 Wire is used widely,such as:E-cigratte,resistance sheet,

honeycomb carrier,heating element,electric-stove stip,mica resistance.
